XNA121

Name: XNA121
SKU: XNA121
Availability: InStock

1.2T Autonomous Stacker with Unique Dual Forks for Narrow Aisle Stacking

Contact Us

Explore the XNA121

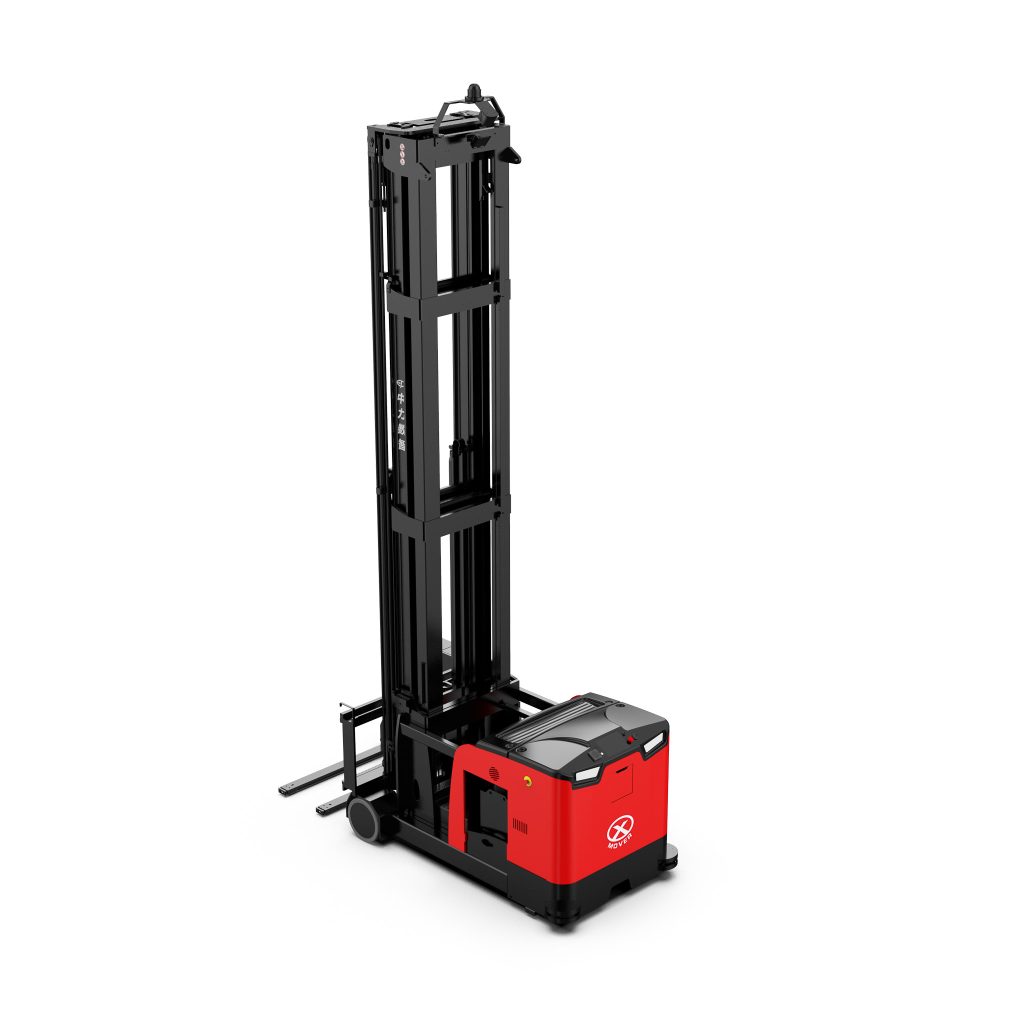

The XNA121 Autonomous Narrow Stacker is designed to conquer the most space-constrained warehouse environments. With a compact chassis and ultra-tight turning radius, it navigates aisles as narrow as 1.65 meters, making it ideal for dense racking layouts. Combining 3D SLAM and QR code fusion navigation, it achieves exceptional positioning accuracy and control even in complex warehouse structures. Available in both single-sided and double-sided fork configurations, the XNA121 redefines stacking efficiency for modern logistics.

Compact Design

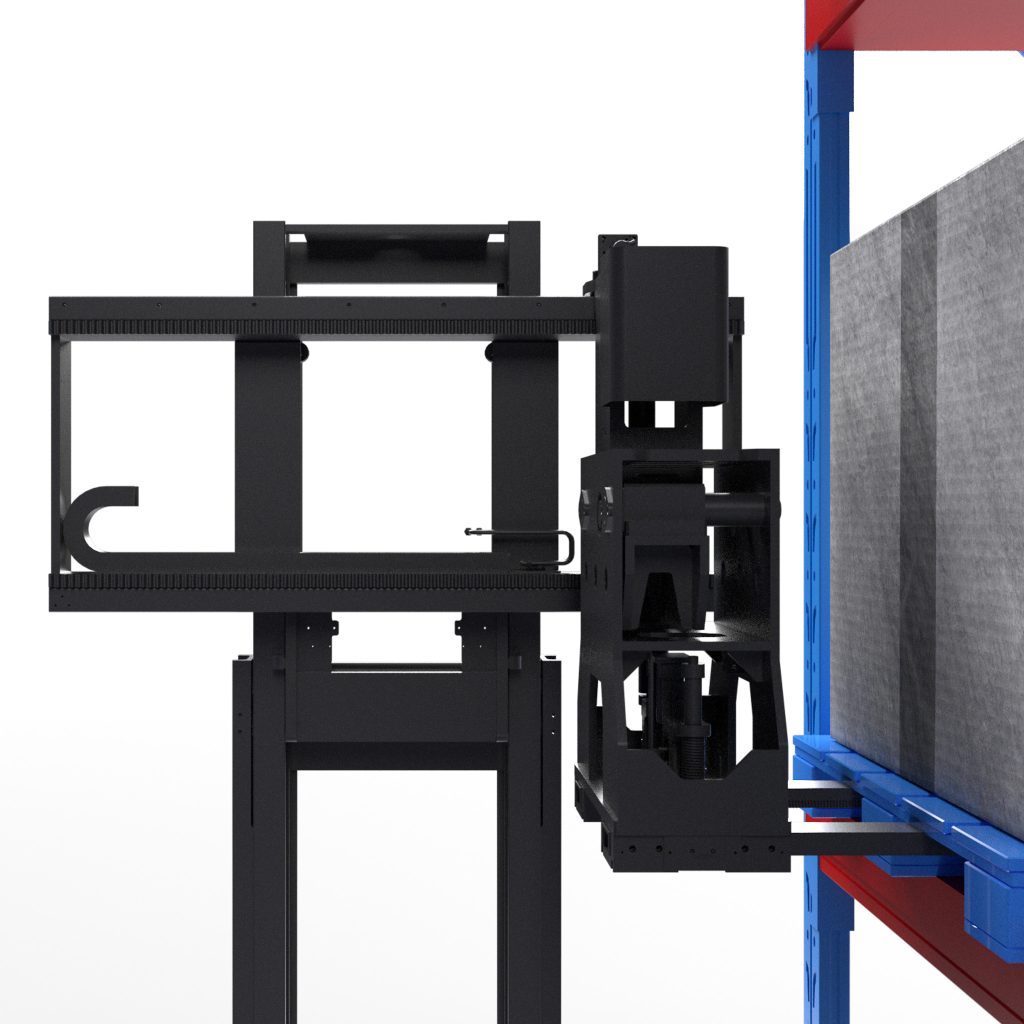

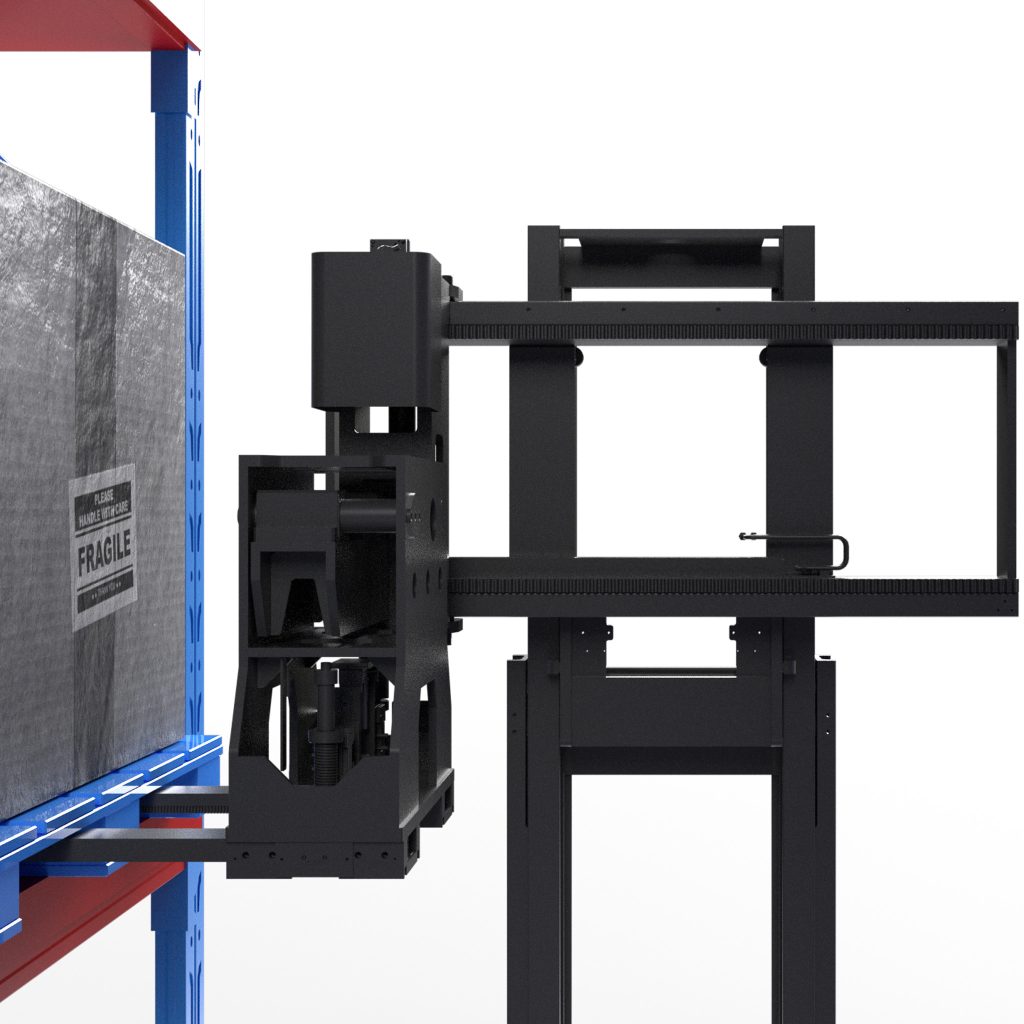

Double Forks

Advanced Navigation

Versatile Handling

Application

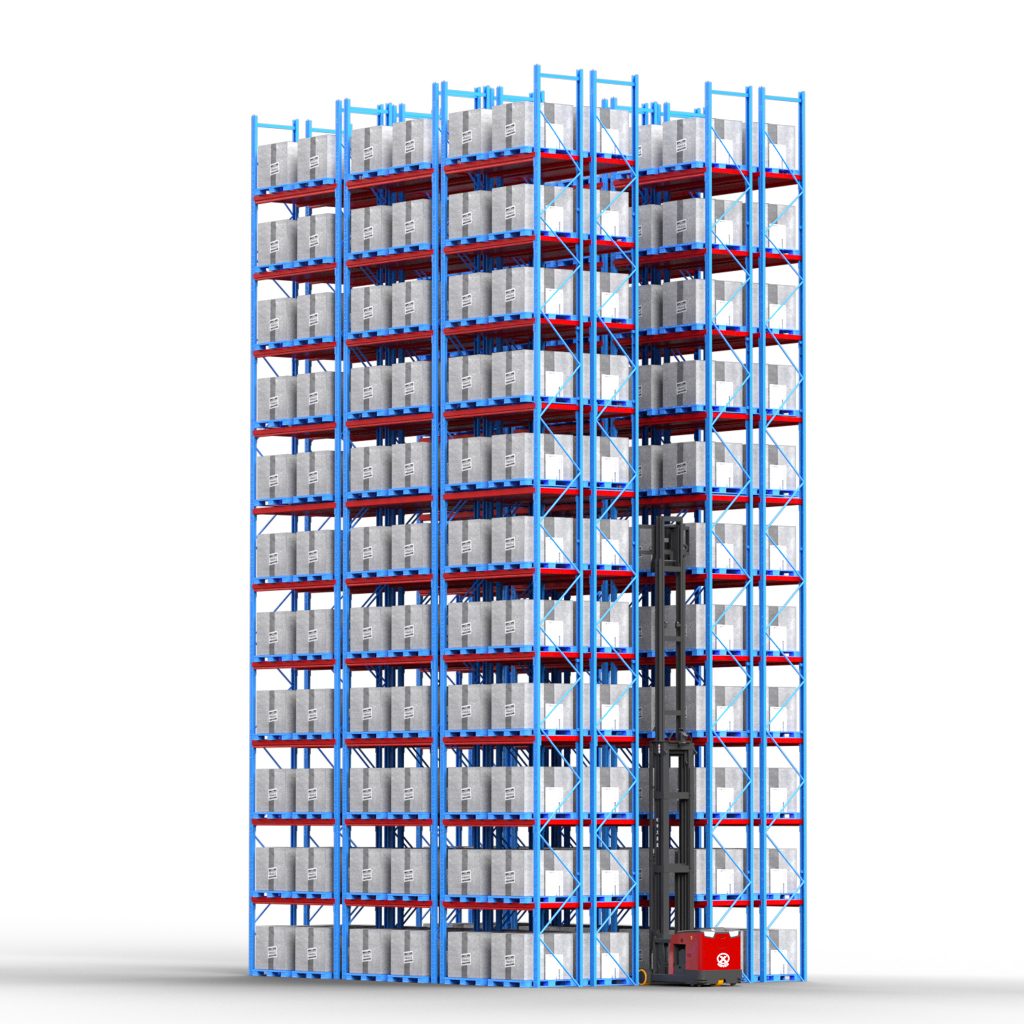

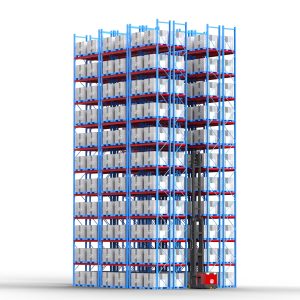

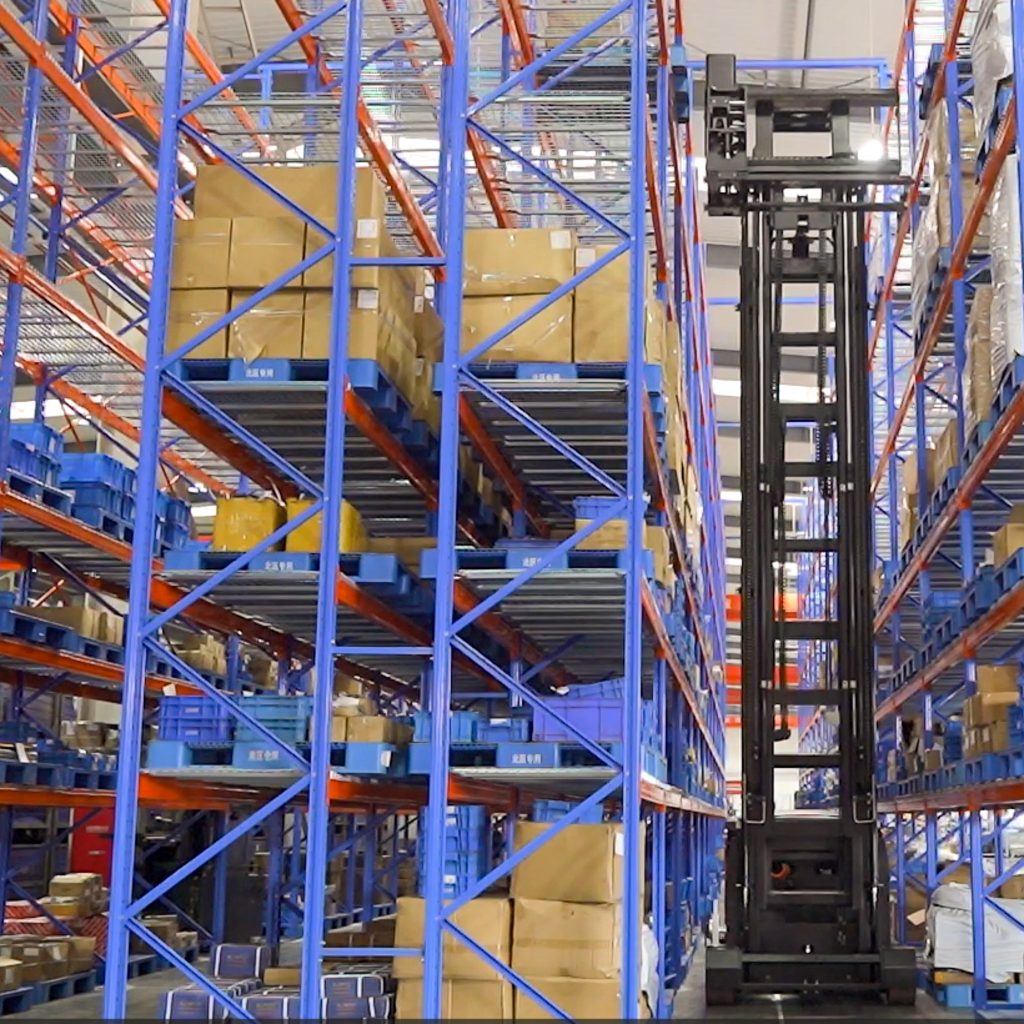

The XNA121 is built for narrow-aisle, high-density storage environments where space and efficiency are critical. It performs best in narrow-aisle high-level racking, medium-level racking, and VNA (Very Narrow Aisle) warehouse setups. With stacking heights reaching up to 8.5 meters, it enables full utilization of vertical space while maintaining safe and precise pallet handling. Its unique two-way stacking capability enhances flexibility for diverse storage configurations, making it an ideal solution for modern smart warehouses.

Book a virtual demo

Specs

Core specifications for the XNA121.

Name	Value
Lift height	8500 mm
Load capacity	1200 kg
Navigation	3D SLAM/QR code
Service weight	6500 kg
Aisle width for one-sided laoding/unloading	1844 mm
Travel speed	1/1 m/s

About the XNA121

The XNA121 represents EP’s next-generation approach to intelligent warehousing where compact form meets industrial power. Its dual navigation system, double fork options, and robust safety design provide a complete solution for high-throughput, narrow-aisle material handling. By optimizing both horizontal and vertical movement within tight storage spaces, the XNA121 allows businesses to achieve maximum efficiency, safety, and scalability in their narrow aisle stacking operations.

FAQs

Common questions people ask about the XNA121.

What makes the XNA121 suitable for narrow aisles?
Its compact size, 1.65 m aisle requirement, and sideways fork design allow smooth operation in extremely tight spaces without turning.
How high can the XNA121 stack pallets?
The XNA121 can stack loads up to 8.5 meters high, maximizing storage capacity in warehouses with limited floor space.
Is the XNA121 compatible with existing warehouse systems?
Yes. The XNA121 can be seamlessly integrated into existing VNA infrastructures and smart warehouse systems, supporting automated and semi-automated workflows.
